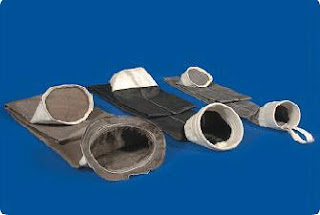

Fiberglass filter fabrics bags

May 25th, 2009 | By admin | Category: Fiberglass Fabrics
Filter cleaning method:

  • Pulse Jet,
  • Reverse air,
  • Mechanical shaker.

Fiberglass filter bagas Styles:

  1. snap and top,
  2. ring top,
  3. collar type,
  4. raw top,
  5. wear cuff,
  6. beaded cuff top,
  7. pocket top,
  8. tail top,
  9. expansion rings,
  10. open top,
  11. strap top,
  12. and others.
 Application:

Because of higher efficient, very good filtration and exceptional durability, their fiberglass filter bags finished with different coatings have become the industries overwhelming choice.

Their Fiberglass Filter Bags are performing beyond customer’s expectations in following industries.

  1. Cement,
  2. Metal,
  3. Ceramic,
  4. Utility Boilers,
  5. Chemical,
  6. Smelting,
  7. Carbon Black,
  8. Ferro Alloy,
  9. Fertilizer,
  10. Power Generatio,
  11. Garbage Incineration,
  12. And many more.

Tailored made bags are made from accurately cut fabric and sewn with specially treated high temp resistant thread that give very strong and durable leak proof seam. Virtually any size, style, configuration and capacity filter bags that meet your exact specification and application requirement are available.

Properties:

Their comprehensive range of advance performance fiberglass filter bags having all in built properties of fiberglass fabric and surface treatment applied on it. The following superior characteristics of our filter bags result in increase productivity, longer life and lower operation cost.

  1. Higher Temperature Resistant: Fiberglass filter fabric have excellent heat resistance upto 260°C continuously and 288°C for intermittent period.
  2. High Tensile Strength: Fiberglass cloth is one of the strongest textile filters, having greater specific tensile strength than steel wire of same diameter, at a low weight, lead to higher strength and durability of filter bags.
  3. Dimensional Stability: A filter bags made up of fiberglass, display low elongation and contraction under load and temperature. This characteristic is critical when high level of dust collection particles is required.
  4. Extremely Favorable Dust Removal: Bags themselves already have favorable dust removals characteristics, the addition of a surface finish make dust removal even easier.
  5. Good Chemical Resistance: Like glass itself, treated fiberglass fabric is highly resistant to attack by most chemicals.
  6. Good Air Flow and Better Filtration: Different weaving pattern and combination of textured filament yarn in weft gives improved filter ability and reduce blocking.

Fiberglass filter bags Finishes:

Depending on application, to ensures bag performance and durability, fiberglass fabric has to have the right finish and surface treatment. Without a protective coating, the glass filaments in filtration fabrics can be broken through self abrasion caused by dust particle, or chemical attack from the gas stream composition on cage contact.

  • Acid Resistance Finish
  • Silicone Oil,
  • Graphite,
  • PTFE Finish,
  • Chemical Resistance Finish,
  • Abrasion Resistance Finish,
  • Water Repellent Finish,
  • Anti-Static Finish
