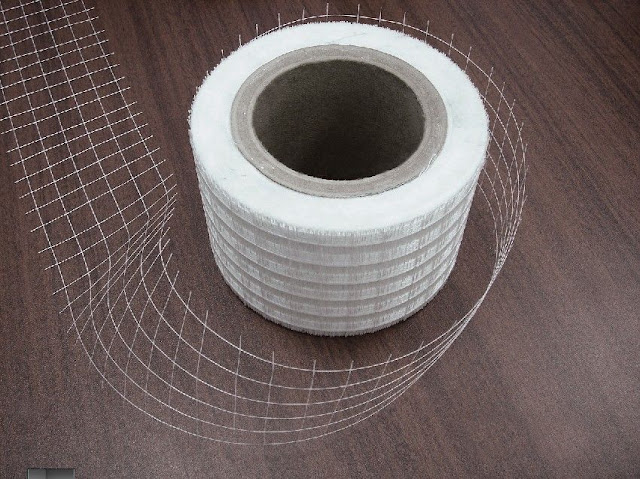

Fiberglass non-woven adhesive scrim
Mar 13th, 2009 | By admin | Category: Fiberglass Mesh
Description:
Fiberglass non-woven adhesive scrim applies the principle of multithread mesh placement, and is shaped by bonding fiber material with adhesive. It is suitable for the products with the features of low gram weight and slight.
Features:
The new type non-woven adhesive scrim can be made into the mesh cloth with big mesh and low gram weight. The gauge of cloth is 0.8×0.8, 1.6×0.8, 2×2 ends/cm. The gram weight per square meter is 7g, 10.5g, 18.5g, 60g. With the high strength, slight material, the products can be widely applied for strengthening marble, mosaic, antifiring plate, reinforced aluminum foil and kraft paper.
Specification:
|
Specification |
SCR-0.8×0.8 |
SCR-1.6×0.8 |
SCR-2×2 |
SCR-3×1.6 |
|
No. of warp and weft(Tex) |
34×34 |
34×34 |
34×34 |
68×136 |
|
Density of warp and weft(End/cm) |
0.8×0.8 |
1.6×0.8 |
2×2 |
3×1.6 |
|
Quality(g/㎡) |
7 |
10.5 |
18.5 |
60 |
|
Tensile strength(N/5cm) |
125×125 |
250×125 |
260×260 |
800×800 |
Source: Newland.
We need the scrim as follows:
SCR-1.6×0.8
SCR-2×2
SCR-3×1.6
No. of warp and weft(Tex)
34×34
34×34
34×34
68×136
Density of warp and weft(End/cm)
0.8×0.8
1.6×0.8
2×2
3×1.6
Quality(g/㎡)
7
10.5
18.5
60
Tensile strength(N/5cm)
125×125
250×125
260×260
800×800
